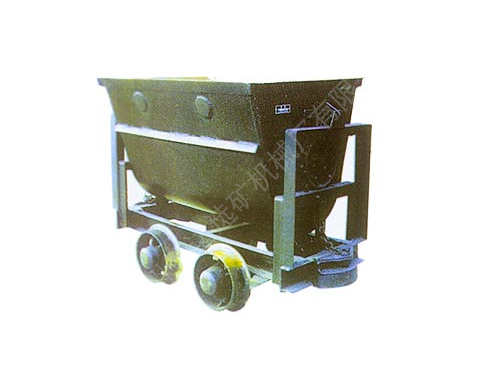

礦車
- Phone：
- 07352831789
Introduce:
礦車是礦山開采作業中的一種主要運輸設備，它通常用于井下和地面運輸。可運煤、礦石、砂石、粘土及其它物料。該設備結構簡單、操作靈活、可靠。可單臺運輸也可成列動力牽引。
Tramcar is a major transportation equipment of the mining operations, which is usually used for underground and surface transportation. It can be used to transport coal, ore, sand, clay and other materials. The structure of this device is simple. It is flexible to operate and reliable. It can transport in single diesel or aligner power traction.
主要型號及技術參數:
MAIN MODELS AND TECHNICAL PARAMETERS:
Tramcar is a major transportation equipment of the mining operations, which is usually used for underground and surface transportation. It can be used to transport coal, ore, sand, clay and other materials. The structure of this device is simple. It is flexible to operate and reliable. It can transport in single diesel or aligner power traction.
主要型號及技術參數:
MAIN MODELS AND TECHNICAL PARAMETERS:
|
型號規格Model and specification |
車廂容積 |
最大載重maximum Dead weight(kg) |
軌距Gauge(mm) |
輪距Tread(mm) |
外形尺寸（長×寬×高）Outside measurement (single-slot) (L×W×H) (mm) |
|
YFC0.5(6)翻斗 |
0.5 |
1520 |
600 |
300 |
1500×850×1050 |
|
JF55-6翻斗 |
0.55 |
1750 |
600 |
300 |
1630×910×1165 |
|
JF75-6翻斗 |
0.75 |
1875 |
600 |
300 |
1820×1035×1230 |
|
YF0.75翻斗 |
0.75 |
1875 |
600 |
300 |
1820×812×1250 |
